Kickstand Phone Case Manufacturer Guide: Zinc Alloy Hinges, Damping Torque, Tooling & B2B Wholesale Sourcing
For international consumer electronics brands, retail distributors, and protective accessory importers, sourcing a high-performance kickstand phone case requires balancing ergonomic hands-free utility with mechanical durability and slimline aesthetics. In the contemporary mobile accessories market, modern smartphone users rely heavily on their devices for vertical video calls, landscape streaming, and desktop workstation docking. However, poorly engineered kickstand cases frequently suffer from hinge loosening, torque degradation, snagging edges, or premature structural failure after only a few hundred open-close cycles. Delivering a commercial-grade kickstand case demands rigorous mechanical design, high-precision metallurgy, controlled damping tolerances, and seamless mold integration.
At Guangzhou Champion’s Tech Ltd, our turnkey OEM/ODM mobile phone case manufacturing facility combines precision metal die-casting, CNC hinge machining, automated dual-layer injection molding, and robotic assembly. This engineering guide provides B2B sourcing managers, product directors, and hardware procurement teams with the technical criteria required to evaluate kickstand hinge architectures, substrate materials, torque longevity protocols, and factory quality assurance standards.
Mechanical Hinge Architectures: Zinc Alloy, Magnetic Rings & Camera Bezels
The core mechanical differentiator of any kickstand case is its hinge mechanism. When developing custom tooling or evaluating private mold options, brand owners must select an architecture that aligns with their target retail price point, user ergonomics, and device charging compatibility.
1. Friction Damping Hinges and Multi-Angle Positioning
Traditional mechanical kickstands utilize spring-loaded or disc-washer friction damping hinges. Engineered with miniature Belleville spring washers and hardened stainless steel pivot pins, friction damping hinges provide smooth, stepless resistance across angles ranging from 15° to 135°. This enables users to position their smartphone securely in both portrait and landscape orientations without relying on fixed plastic notches that wear out over time. Factory calibration must maintain consistent opening torque between 0.35 N·m and 0.65 N·m to ensure effortless one-handed deployment while preventing device collapse under touchscreen tapping pressure.
2. 360-Degree Rotational Magnetic Ring Kickstands
The rapid adoption of magnetic mounting ecosystems has made 360-degree rotational ring kickstands one of the fastest-growing categories in wholesale accessories. Integrating closely with custom MagSafe phone case engineering, this design features an aerospace-grade zinc alloy ring embedded flush within the polycarbonate backplate. The ring serves a triple function: a secure finger grip, a multi-angle kickstand (portrait and landscape), and an aligned conduit for magnetic charging mounts. Precision ball-bearing or detent rotation mechanisms allow full 360-degree orientation without binding or rotational wobble.
3. Integrated Camera Bezel Kickstands
For minimalist and ultra-slim product lines, integrating the kickstand hinge into the raised camera protection bezel eliminates backplate cutouts entirely. The outer perimeter of the camera lens frame pivots open on a micro-engineered internal hinge, propping up the device in horizontal landscape mode while completely concealing the mechanical structure when closed. This architecture keeps the central rear panel unobstructed, ensuring maximum efficiency for wireless inductive charging coils and maintaining a completely flat desktop footprint.
4. Flush Recessed Foldable Metal Bars
Linear folding kickstands utilize an elongated metal bar that nests completely into a precision-molded recess on the lower third of the case. Retained by miniature N52 neodymium catch magnets when closed, the bar deploys instantly via a subtle ergonomic fingernail groove. Because the deployed strut rests flat against the desk surface, it delivers exceptional stability for large-screen flagship smartphones and phablets during extended typing or video viewing sessions.
Substrate Materials & Structural Co-Molding Integration
A durable kickstand case is an advanced composite assembly. The mechanical stress exerted by the deployed kickstand must be absorbed and distributed across the case body without causing hairline fractures, warping, or delamination.
Zinc Alloy (Zamak 3/5) vs. Anodized Aluminum Alloys
The metallurgical choice for kickstand arms and ring assemblies directly dictates mechanical rigidity, surface finish versatility, and unit economics:
- Zamak 3 / Zamak 5 Zinc Alloy: The industrial standard for precision die-cast kickstands. Zinc alloys offer excellent fluidity during high-pressure die-casting, permitting intricate micro-hinge knuckles, integrated retention lugs, and thin-wall geometry (+/- 0.02mm tolerance). They accept high-durability electroplating and PVD coatings, producing mirror chrome, matte titanium, gunmetal, or satin black finishes with superior scratch resistance.
- 6000-Series Aerospace Aluminum: Utilized for premium lightweight lines. Aluminum components are CNC-machined from extruded stock and finished with Type II architectural anodizing. While offering roughly 60% weight reduction compared to zinc, tooling and cycle costs are higher, making it suited for luxury brand tiers.
Reinforced Polycarbonate (PC) Backplates and Hinge Anchoring
Securing a metal hinge into an elastic phone case requires a rigid structural anchor. As explored in our hybrid phone case manufacturer guide, mounting the hinge pivot directly into soft elastomer leads to flex and hinge detachment. Champion’s Tech engineers utilize high-impact optical-grade polycarbonate (PC) backplates with molded reinforcement ribs and counter-sunk mounting pockets. The metal hinge brackets are secured via ultrasonic heat-staking or precision micro-riveting directly into the rigid PC matrix, creating a rock-solid mechanical foundation.
Shock-Absorbing TPU Perimeter & Corner Airbag Defense
While the rigid PC backplate and metal hinge provide functionality, impact survival depends on the perimeter bumper. Through dual-shot injection co-molding, resilient thermoplastic polyurethane (TPU) is chemically bonded around the PC core. Incorporating internal corner airbag pockets—similar to the structural principles outlined in our shockproof phone case manufacturer guide—ensures that kinetic energy from drops is effectively dissipated before reaching the internal smartphone chassis, even if the device falls while the kickstand is deployed.
Hinge Durability, Torque Retention & Quality Control Protocols
B2B buyers face substantial brand reputation risk if kickstand hinges fail in the field. At Guangzhou Champion’s Tech Ltd, every kickstand mold and production batch undergoes rigorous mechanical stress verification in our QA testing laboratory.
Dynamic Cycle Endurance and Torque Degradation Testing
Kickstand hinges are subjected to automated pneumatic actuator cycle testing. Standard OEM production requires surviving a minimum of 5,000 continuous opening and closing cycles (with premium enterprise tiers rated up to 10,000 cycles). Digital torque meters measure initial resistance and verify that torque degradation remains under 20% across the full cycle lifecycle, guaranteeing that the kickstand will not droop, sag, or fail to support phone weight during normal multi-year customer usage.
Multi-Angle Drop and Lateral Shear Impact Testing
Phones are accidentally dropped in various states of kickstand deployment. Our testing regimen evaluates drop survival across two distinct configurations from heights of 1.2m to 1.5m onto reinforced steel-backed concrete:
- Stowed (Closed) Configuration: Verifies that the internal retention magnets prevent unintended kickstand popping and that the flush metal structure does not transmit shock directly through the device rear glass.
- Deployed (Open) Configuration: Tests the shear strength of the hinge pin and mounting brackets under unexpected impact forces, ensuring the hinge does not shatter, dislodge, or gouge into the phone casing.
Corrosion Resistance and Salt Spray Verification
Because kickstand components encounter continuous palm contact, perspiration, and environmental moisture, metal surfaces undergo standardized salt spray testing (ASTM B117 / ISO 9227). Electroplated and PVD-finished zinc alloy components must withstand 48 to 96 hours of neutral salt spray without surface pitting, blistering, or galvanic hinge seizing.
Wireless Charging Compatibility and Thermal Dissipation
Placing metal structures near high-frequency wireless charging coils can induce eddy currents, leading to excessive heat generation and charging throttling. Our engineering team conducts electromagnetic simulation and physical temperature profiling, ensuring that kickstand rings and hinges maintain a minimum clearance of 3.5mm from the Qi/Qi2 inductive coil zone or incorporate ferrite shielding layers to preserve maximum charging efficiency.

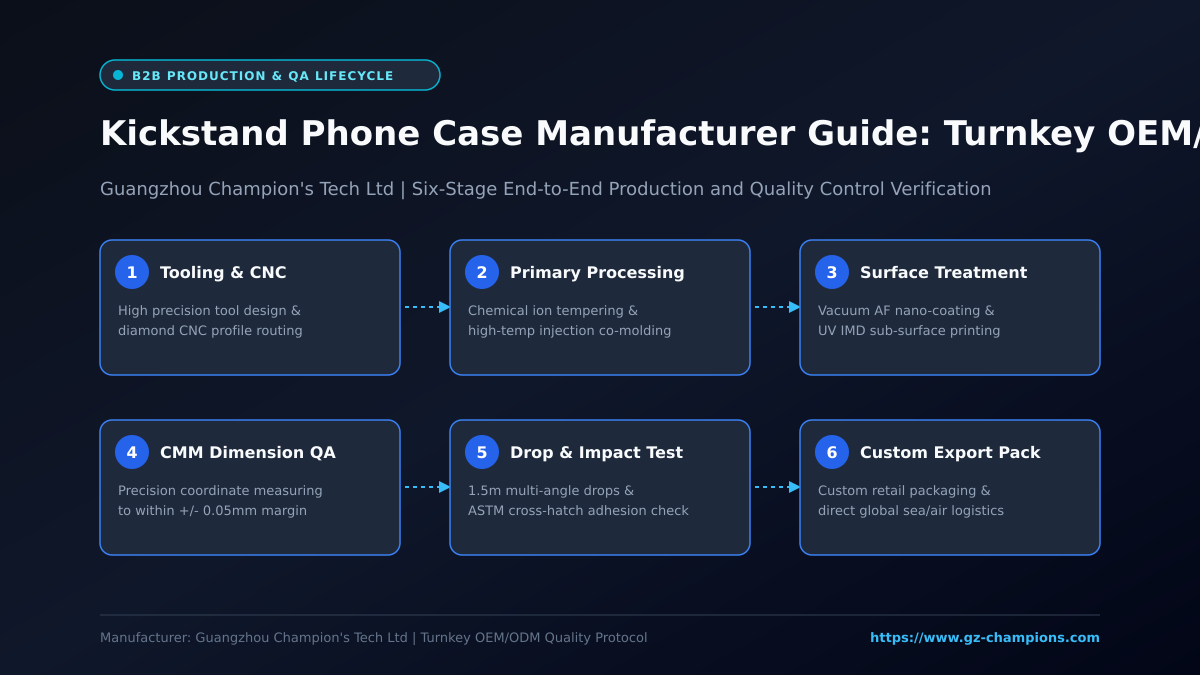

The Turnkey Manufacturing Process: From Tooling to Export QC
Transforming a 3D kickstand concept into mass-produced retail inventory involves coordinated synchronization between metal die-casting bays, plastic injection bays, and automated cleanroom assembly lines.
Stage 1 & 2: CAD Tooling Fabrication and Precision Metal Die-Casting
Our tooling workshop crafts multi-cavity hardened steel molds (using NAK80 and S136 tool steels) for both plastic chassis and metal hinge parts. High-speed hot-chamber die-casting machines form the raw zinc alloy kickstand rings and arms with micron-level consistency, followed by automated vibratory deburring and precision CNC trimming.
Stage 3 & 4: Dual-Shot Plastic Injection and Metal Surface Finishing
In the injection molding bay, precision injection presses execute dual-shot TPU and PC co-molding, embedding structural mounting bosses and acoustic damping pads. Concurrently, die-cast metal components undergo multi-stage ultrasonic degreasing, copper undercoating, nickel plating, and protective PVD topcoating to achieve the client’s custom Pantone or metallic finish.
Stage 5 & 6: Automated Hinge Riveting, Torque QC & Retail Packaging
Robotic pick-and-place workstations position the metal hinge brackets into the molded case housings, where micro-riveting presses secure the pivot pins under calibrated tonnage. Every completed case undergoes 100% torque inspection, optical alignment scanning, and protective film lamination. Units are packaged in custom retail gift boxes, blister packs, or eco-friendly kraft cartons, complete with international barcodes and anti-counterfeiting seals ready for global shipping.
B2B Procurement Checklist & RFQ Specifications
When requesting an OEM/ODM quotation from a kickstand phone case manufacturer, providing detailed mechanical and aesthetic specifications expedites tooling evaluation and ensures accurate unit pricing:
- Target Device Compatibility: Exact smartphone models (e.g., iPhone 17 / 18 series, Samsung Galaxy S-series, Google Pixel) and required CAD dimensional offsets.
- Kickstand Mechanism Type: 360° rotational magnetic ring, flush recessed bottom strut, or camera bezel integrated hinge.
- Hinge Material & Finish: Zamak 3/5 zinc alloy vs. 6063 aluminum; electroplated matte black, gunmetal, chrome, or PVD titanium finish.
- Cycle Life Requirement: Minimum cycle endurance rating (5,000 cycles standard vs. 10,000 cycles premium industrial rating).
- Drop Protection Threshold: Mil-spec 1.2m or 2.0m shock-absorbing rating with internal TPU corner air-cushion geometry.
- Wireless Charging & Magnetic Specs: Qi2 / MagSafe alignment specifications, embedded magnet grade (N52 neodymium), and Gauss strength ratings.
- Custom Branding & Logo Execution: Laser engraving, silk-screen printing, or embossed tooling logos on the kickstand arm or TPU rim.
- Packaging & Compliance: Custom retail packaging, blister clamshells, RoHS/REACH compliance documentation, and master carton palletization.
Partner with Guangzhou Champion’s Tech Ltd for OEM/ODM Kickstand Cases
Whether you are launching an innovative MagSafe rotational kickstand product line, building enterprise-grade rugged cases for field operations, or expanding your retail brand with private mold tooling, Guangzhou Champion’s Tech Ltd offers end-to-end engineering excellence. Explore our custom development capabilities in our private mold phone case manufacturer guide, or consult our technical sales team directly to review 3D STEP files, request physical sample kits, and receive a transparent OEM tooling quotation.
